Small Hole EDM

Hole Pop

Our Small Hole EDM (Electrical Discharge Machining) services provide precision and efficiency for drilling small, deep holes in a variety of materials. Utilizing advanced Small Hole EDM technology, we can produce high-quality components with exceptional accuracy and consistency.

Schedule a meeting

Small Hole EDM is a highly precise machining process used to create extremely small, deep, and accurate holes in hard or conductive materials. At SD Prototypes Manufacturing Solutions Inc., we use advanced EDM drilling technology to produce micro-holes with exceptional precision and consistency.

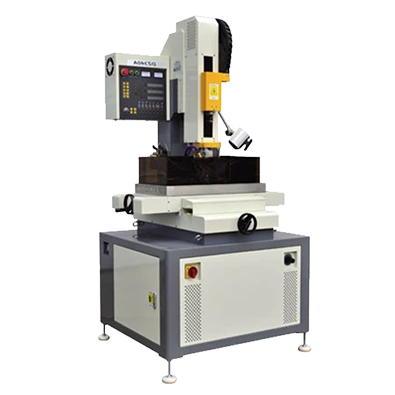

Small Hole EDM

Our offer includes Small Hole EDM intended for use in production companies, educational printers, amateur printers for home use and professional industrial 3D printers.

Book An Appointment

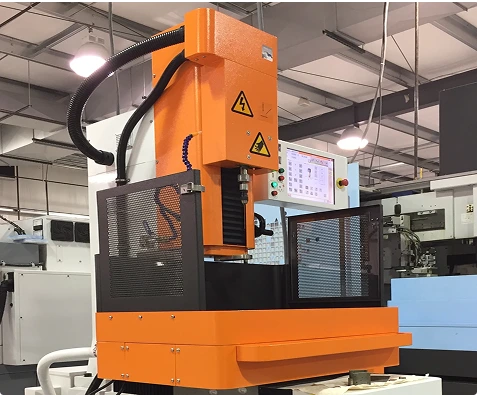

How Small Hole EDM Works

Small Hole EDM works by using rapid electrical sparks to erode material instead of applying physical force. A thin tubular electrode delivers controlled electrical pulses while dielectric fluid flushes away debris, allowing the machine to drill tiny, deep, and precise holes in even the hardest metals. This process ensures clean edges, tight tolerances, and accurate results, making it ideal for start holes, cooling holes, and micro-feature applications.

Advantages of Small Hole EDM

01

1. Ability to Drill Extremely Small Holes

Small Hole EDM can produce holes as small as 0.4 mm (0.016 in) in diameter, which is difficult or impossible with conventional drilling methods.

02

Works on Hard and Tough Materials

It can machine hardened steels, carbides, titanium, and superalloys without tool wear issues, making it ideal for aerospace, medical, and mold-making industries.

03

High Aspect Ratio Capability

EDM can create deep holes with high length-to-diameter ratios (often >100:1) while maintaining straightness and accuracy.

04

No Mechanical Stress

Since EDM is a non-contact process, there is no cutting force, reducing the risk of deformation or damage to delicate parts.

05

Ability to Drill Through Complex Shapes and Hard-to-Reach Areas

EDM can drill holes in curved or angled surfaces and even through pre-hardened components, which is challenging for conventional drills.

06

Cost Effective

For complex parts and hard materials, EDM can be more cost-effective than traditional machining methods. It reduces tool wear costs.
